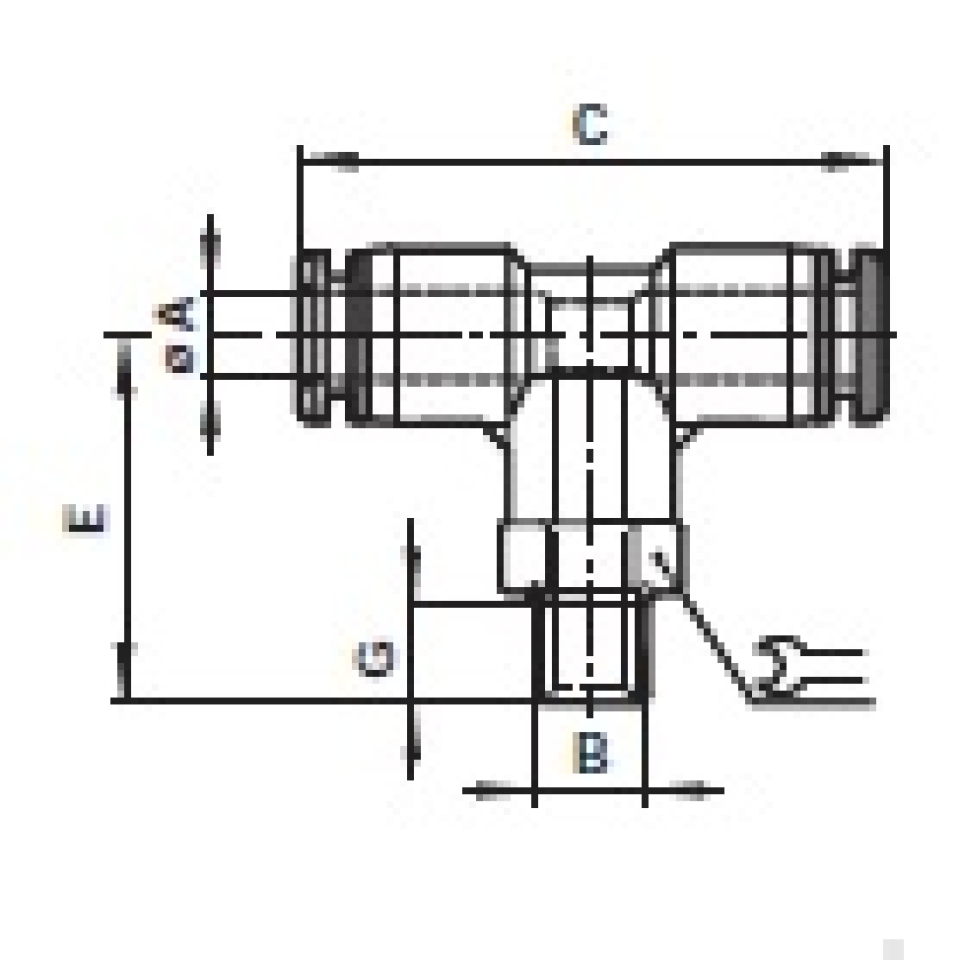

T orientable Male
We encourage us for cultivating the loyalty to our clients, achieving always for them the best articles to the best price. We work with first marks and endorses us have like clients to the main small and medium enterprises of our city.It consults on-line request
TECHNICAL data
Flowed:
Air compressed
Pressure of work :
Empty 750 mm Hg, until 10 bar
Temperature acclimatise:
0 to 60°C
Consult to our Technical Service stops
Inferior temperatures to +2°C
Sizes of tube:
4, 6, 8, 10, 12, 16 mm
Sizes of thread:
M5, M6, 1/8", 1/4", 3/8" and 1/2" ISO
cil. And ISO cón
Pipe:
Nylon 11 or 12
Polyurethane 85, 95 or 98 D
Materials
Body: PBT
Joints: NBR (exenta of silicone)
And together tóricas
Threads: brass niquelado
Pulsador Of disconnection: POM
Pinza Of subjection: steel
Stainless
Collarín: Brass niquelado
Film sellante: chemitech G-175L
Flowed:
Air compressed
Pressure of work :
Empty 750 mm Hg, until 10 bar
Temperature acclimatise:
0 to 60°C
Consult to our Technical Service stops
Inferior temperatures to +2°C
Sizes of tube:
4, 6, 8, 10, 12, 16 mm
Sizes of thread:
M5, M6, 1/8", 1/4", 3/8" and 1/2" ISO
cil. And ISO cón
Pipe:
Nylon 11 or 12
Polyurethane 85, 95 or 98 D
Materials
Body: PBT
Joints: NBR (exenta of silicone)
And together tóricas
Threads: brass niquelado
Pulsador Of disconnection: POM
Pinza Of subjection: steel
Stainless
Collarín: Brass niquelado
Film sellante: chemitech G-175L
