Taladro BOSCH PSB 500 RE
Punch of percussion Easy PSB 500 RE of Bosch: maximum power in the minimum space
Consults on-line request
Main characteristics of the product
Anybody puts it to him so easy: compact design with handle antivibraciones Softgrip, weight reduced (only 1,5 kg) and exceptional manejabilidad that guarantee big comfort to the user and the maximum performance in any application
Powerful engine of 500 W and diameter of perforación of 13 mm in concrete: it allows to make with ease even the heaviest works

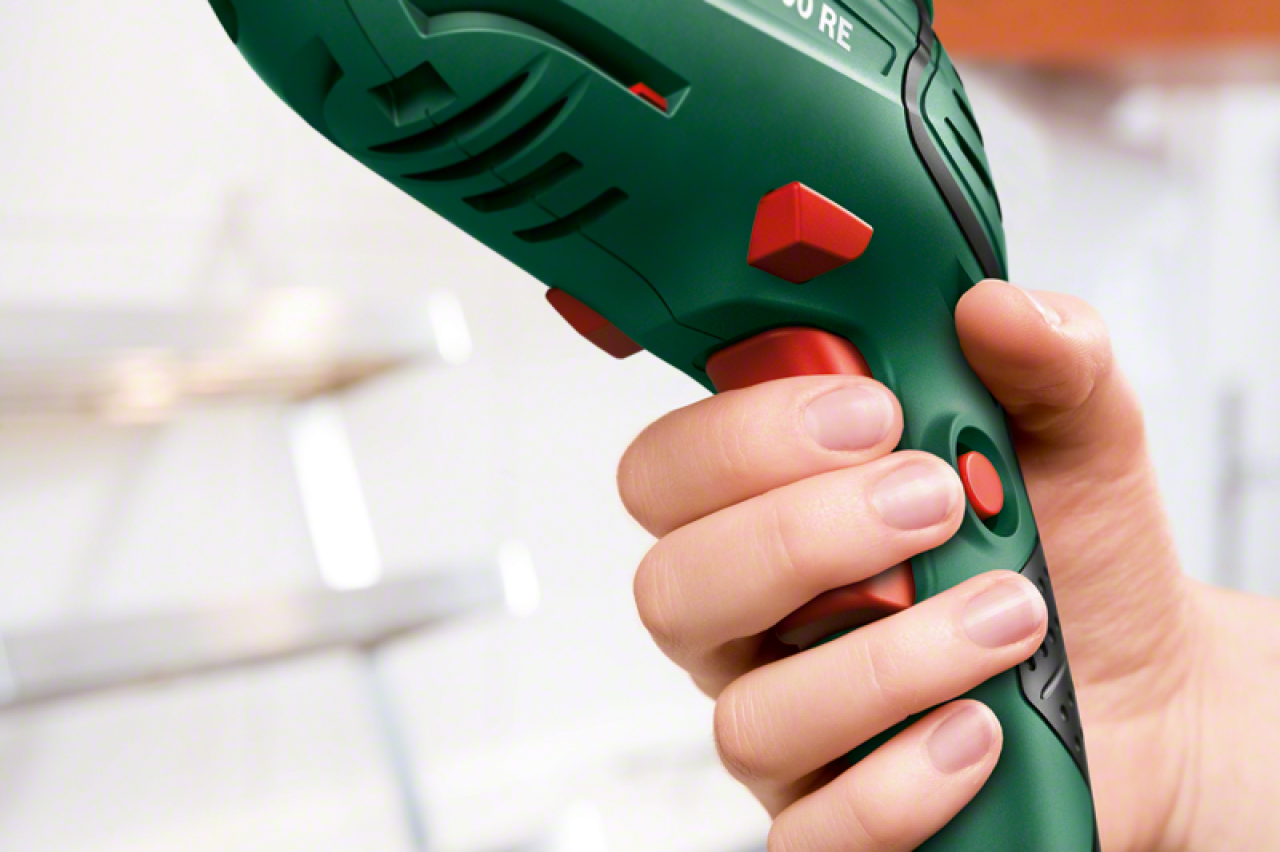

Electronic control of the number of revolutions Bosch: the "acceleration" of 0 to the maximum with the pulsador of conmutación allows him work of precise form, for example, to the home of the perforación of smooth surfaces or in works of atornillado
Other advantages of product

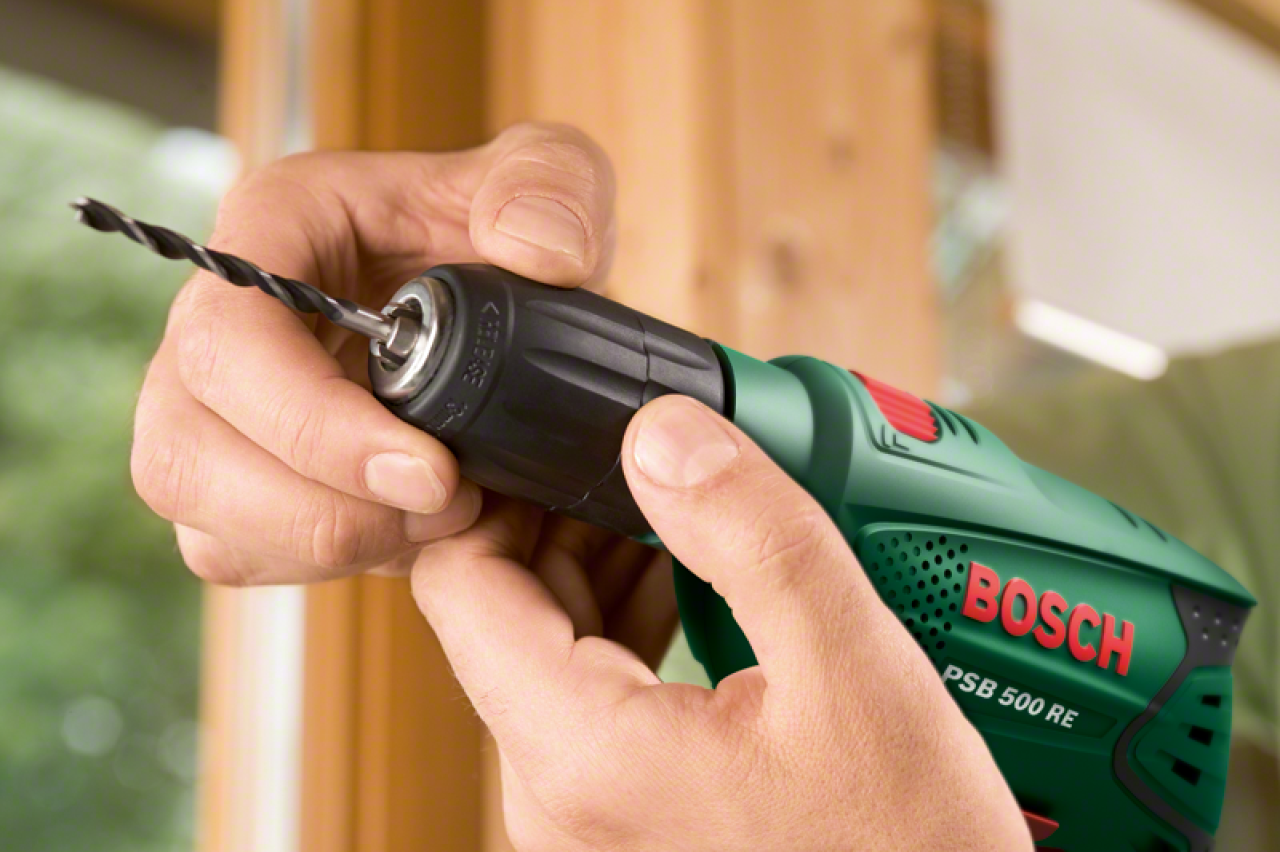

Portabrocas Of fast subjection of two casquillos to change the tool of fast and simple way
Reversible twist
Comfort of work thanks to the integrated switch for the operation continued
Connection for the aspiration of powder: aspiration of available powder like optional accessory
Switch of operation for atornillar/taladrar/taladrar with percussion for works in function of the type of material
New guide of cable with device colgante for a practical storage
Technical data
Nominal power absorbed 500 W
Useful power 228 W
Pair of twist máx. 7,5 Nm
Number of careers in empty 50 – 3.000 r. p. m.
Number of percussions 33.000 i. p. m.
Weight of the machine 1,6 kg
Interval of perforación
Ø Of perforación máx. In concrete 10 mm
Máx. Ø Of perforación in steel 8 mm
Ø Of perforación máx. In wood 25 mm
Information on noise/vibrations
Values of measurement determined as IN 60745.
Total values of swing (total of vectors of three directions).
Taladrar In metal
Value of vibrations generated ah 4.0 m/s²
Tolerance K 1.5 m/s²
Taladrar With percussion in concrete
Value of vibrations generated ah 33.0 m/s²
Tolerance K 3.5 m/s²
Atornillar
Value of vibrations generated ah 2.5 m/s²
Tolerance K 1.5 m/s²
Cut threads
Value of vibrations generated ah 2.5 m/s²
Tolerance K 1.5 m/s²
The level of noise with weighting To of the electrical tool presents the following half values:
Level of acoustic intensity 97 dB(To);
Level of acoustic power 108 dB(To).
Uncertainty K = 3 dB.
