Constituido por una campana metálica circular que sirve de protección contra agentes corrosivos, una base de caucho de 75-80º shöre y de un tornillo de ajuste de cabeza hexagonal. La campana sirve de asiento estable para los pies de la máquina.

Series CAM

Constituted by a metallic bell circulate that it serves of protection against agents corrosivos, a base of rubber of 75-80º shöre and of a bolt of adjust of hexagonal head. The bell serves of stable seat for the feet of the machine.
It consults on-line request

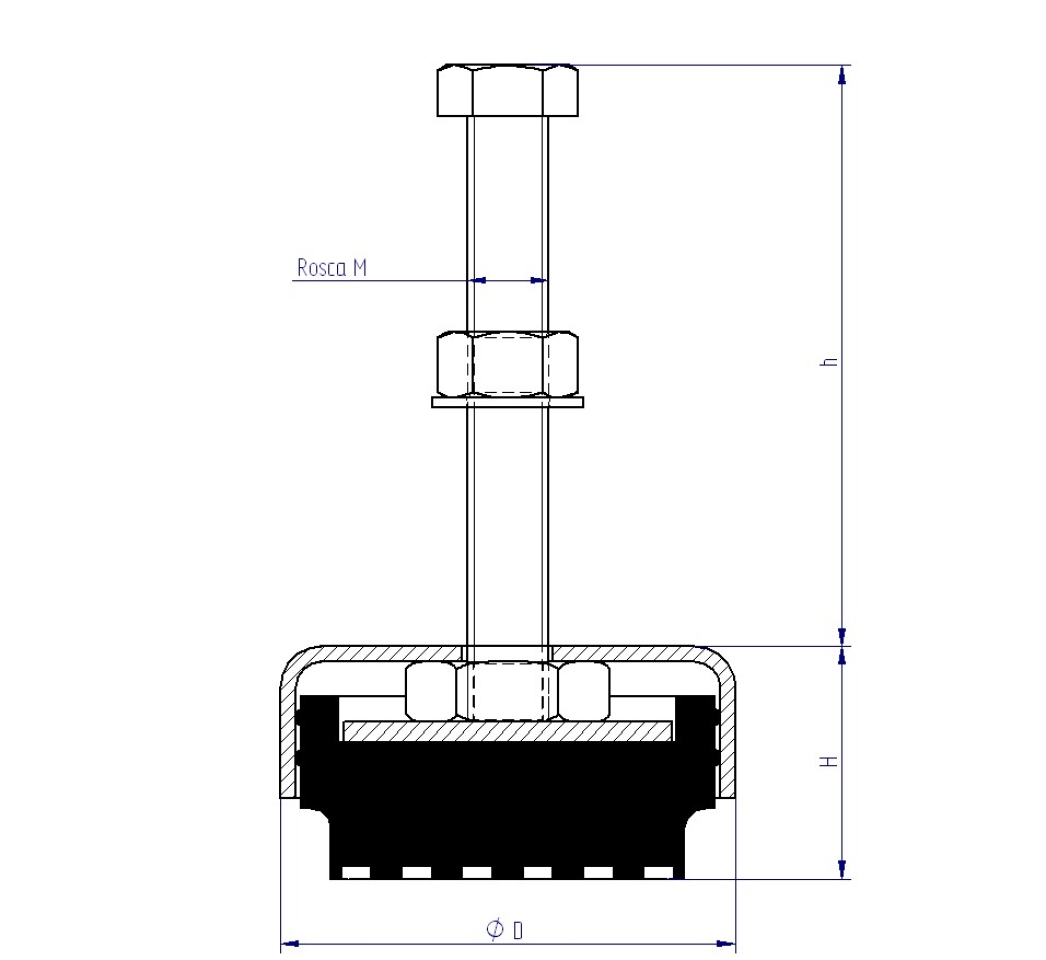

Technical chip

Hardness  Hardness 75 Shöre.
Diameter Bolt  M-16 x 120
h m/m  115
H m/m  49
D m/m  90
Zone Optima Work Kgs.  600-900
